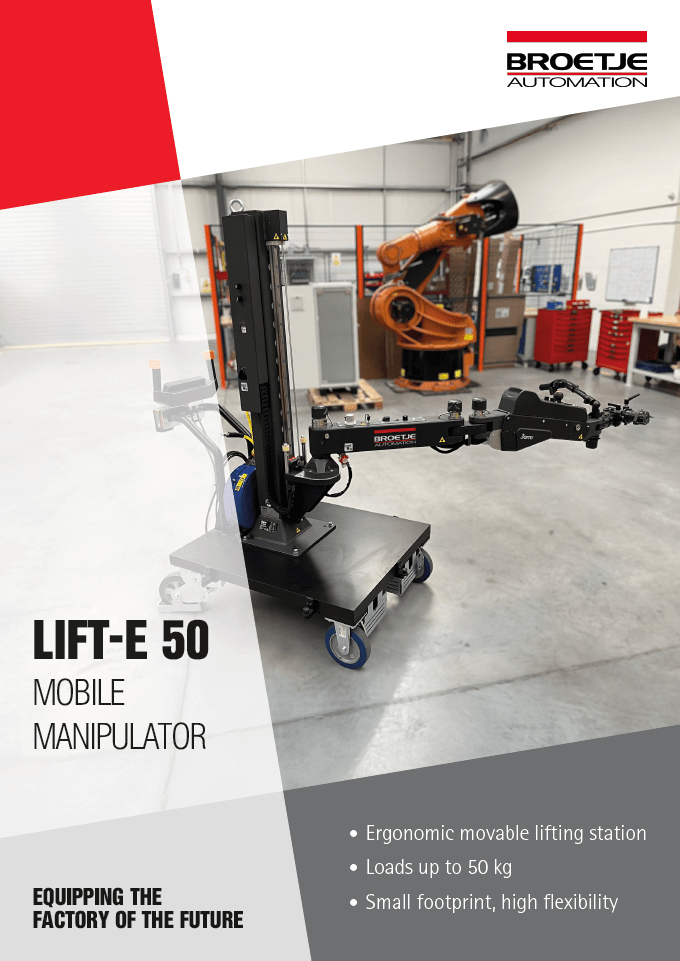

Lift-E 50 – Mobile Manipulator
Ergonomic Movable Lifting Station
The “Lift-E-50” (50 Kg Ergonomic Lift) is a mobile manipulator solution to assist operators with weighless/balanced ergonomic workhandling of heavy or bulky objects up to 50Kg. Drive it into position through battery powered wheelsets – no waiting for crane availability; compact footprint for use in areas of limited access.
Custom end of arm tooling designed to suit customer applications: move parts to and from conveyors, part inspection, assist on assembly lines, move machine tools or billets into CNC machines and many more applications.
Technical Data
Manipulator Arm
- Lifting capacity: 50 kg
- deal working pressure: 0.7 mpa (7 bar)
- Reach: 1.5 m
- Height adjust: Arm reach = 0.7 m
Column reach = additional 0.95 m - Maximum weight of system: ± 600 kg
- TECNOSPIRO 3Arm M5
Battery Powered Trolley
- Two speeds: 2 km/h or 4 km/h
Two speed settings (reprogrammable by request) - Safety: Hand controls featuring deadman stop for anti-crush protection
- Dual 18V (5.2AH) & twin charger
- Recharge time: 60 mins
Special Features
- Two pneumatic circuits and electric controls.
- Battery controlled trolley
movements, pneumatic lift assit - Increase operator productivity
- Enhanced ergonomics in areas with limited access
- Optimal maneuverability provided by motorised wheels
- Intuitive, safe operation
- Easily navigate slopes up to 6-degree (10.5%) incline
- Eliminate most common causes of work injury
- Digital Display with load state indication
- Two battery powered fixed castors for movement in the production area.
- Brushless DC motor with integrated electromechanical parking brake.
- Non-marking wheels
- Sprung turning castors to maintain traction on rough surfaces
- Retractable Airline for pneumatic connection
- Pneumatic locking of all manipulator joints
- Safe mechanical tool locking system
- CE / UKCA certified
News
Improved ergonomics and worker assistance: Broetje-Automation UK introduces the Lift-E-50 mobile manipulator system
- Factory of the Future, Operational Tooling
Broetje-Automation UK has introduced the Lift-E-50, a new addition to the Broetje-Automation portfolio of ergonomic operational toolings. This highly flexible, mobile manipulator can handle loads of up to 50 kilograms in workshop environments.
