STAXX Box
4-Axis Fiber Placement Machine
The STAXX BOX is a robust standalone 4-Axis Fiber Placement Machine that integrates our standardized single tow end effector with a rotable layup table in the smallest installation space.
With its condensed design it can be comfortably relocated and is an ergonomic and user friendly system ready for production. This compact, flexible and easy to use automated fiber placement machine is ideally suited for the automated production of small composite parts at low cost.
Technical Data
- Material spool with tow tension control
Optional: Level measurement - Compaction roller with anti-stick polymer coating
- Controlled pneumatic compaction unit force up to 30dN (~kg)
- Backfilm collection spool
- Internal water cooling for prepreg material
- Deflection roll
Optional: Tow break detection - Robust cutting unit for tows above 50k
- Controlled Heating unit with infrared emitter, diode laser or flash-lamp
- Material flexibility: Any given width from 1/8‘‘ width up to 2‘‘ (50,08 mm)
- 2 Sets of compaction rollers for 1” and 2”
Special Features
Flexibility combined with industrial readiness
- Robust system for demanding
materials - Various material types (PrePreg, TowPreg, DryFiber, Thermoplast, etc.)
- Flexible tow width
- Siemens NC Controls
- Modular cell concept with good accessibility
Digital Twin
- Full Simulation of entire cell layout
- CAM System for offline programming based on 3D/2D CAD data
- Collision analysis
- Simulation for both, machine and layup concept
Cost efficient approach
- No foundation needed, suitable for almost any production environment
- Standardized system
components
STAXX Box Product Information

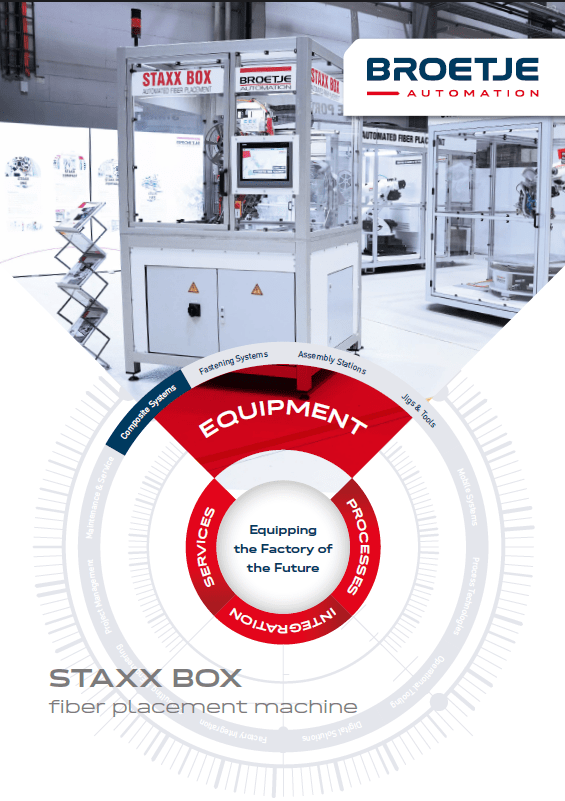

Download our product flyer for more detailed information about the STAXX Box.
