STAXX COMPACT
Fiber Placement Machining Center
The STAXX COMPACT is robust standalone 16-lane fiber placement machine designed for high volume industrial production. The system is ideally suited for the mass production of small composite parts. It achieves high workpiece quality while minimizing material waste.
It comes with Broetje-Automation´s HMI (Human Machine Interface) SCORE coupled with an automated workpiece loading and unloading system as well as intelligent quality control results in reduced workload, thus decreasing labour cost and cycle times.
The machine allows for integration into a flowline concept connecting multiple stations in order to automate and accelerate the manufacturing process even further.
Technical Data
- Material flexibility: 16 tow Towpreg, Prepreg and Dryfibre 1/4‘‘ (6,25mm) or 1/2‘‘ (12,7 mm)
- Feed rate 60m/min
- Cut on the fly 45m/min
- Max. part length: 66,92‘‘ (1700mm)
- Pallet size: 1525mm x 900mm
- 4-axis layup (x,y,z,c)Z-travel: 500mm
- Electrical Installation: 30kW
- Pneumatic Installation: 6bar
- Air conditioned enclosure including creel and material storage
- Double-sided parallel loading / unloading with zero point clamping systems
- Pallet handling system
- Ultra-compact machine design: 6500mm x 3000mm x 3000mm
- Siemens 840D-SL Controls
Special Features
- Direct layup of 2D unidirectional carbon fiber net shape
- Totally enclosed and air conditioned system for maximum flexibility
- No limitations in fiber orientation
- Automated component loading and unloading
- Closed air conditioned cell resulting in high safety and high scalability
- Easy material reloading
- Operator friendly Human machine interface
- Compact dimensions, easy relocation
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

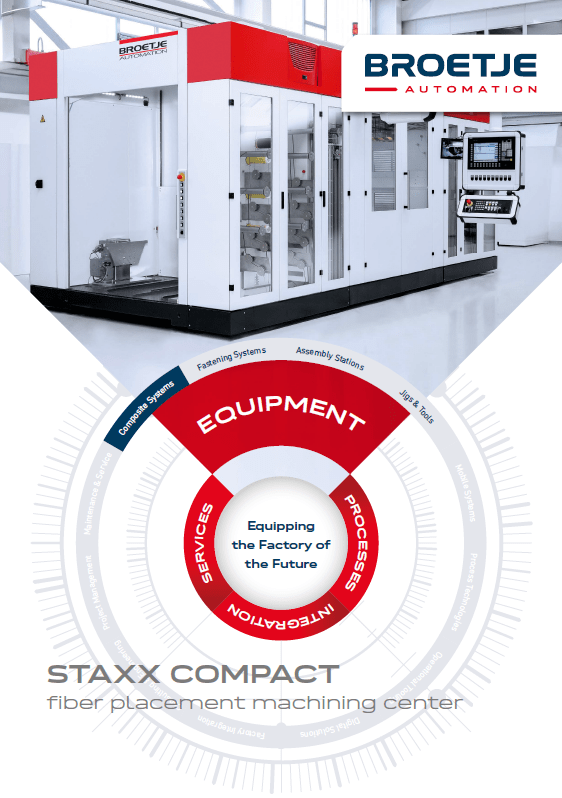

More InformationSTAXX Compact Product Information
Download our product flyer for more detailed information about the STAXX Compact.
