STAXX Flex
Robotic Fiber Placement
The STAXX FLEX is a high performance automated fiber placement end-effector for complex two- and three-dimensional parts. Its low weight of 440 kg including material enables it to be mounted on standard industrial robots of the 500kg class. The system is ideal for automated fiber placement in serial production. It supports common materials such as PrePreg and Dry Fiber up to 50K per tow.
The open, modular design ensures good accessibility to all components and quick and easy maintenance without tools. An automatic changing device can be integrated to further increase productivity. This allows maintenance work and material loading to be carried out parallel to the laying operation.
Technical Data
- Net weight 280 kg / 620 lb Including material 440kg / 970 lb
- Max. laying speed 60 m/min
- Cut on the fly 45 m/min
- Segmented compaction roller for even distribution of compaction force to all tows
- 16 x 8kg material spools on board
- Female layup radius down to 800 mm
- Material flexibility: Thermoset and Thermoplast ¼” and ½”
- Heating unit utilizing IR lamps or laser diodes
- Long-life cutting unit >10.000 cuts without rework
Special Features
- High performance at complex parts, designed for 2D and 3D operation
- Various material types (PrePreg, DryFiber, etc.)
- High depositing mass due to thehigh laying and cutting speed with 16 tracks
- Flexible use on a variety of positioning systems (industrial robot, machine style gantry, open gantry optional available)
Integrated Quality Control
- Constant compaction force
- Compaction roller following the contour
- Camera based inline ply inspection
- CAM system with digital twin for layup and performance simulation
Ease of use
- Open and modular design
- Ergonomic access to major components
- Changable standard components, service parallel to operation
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

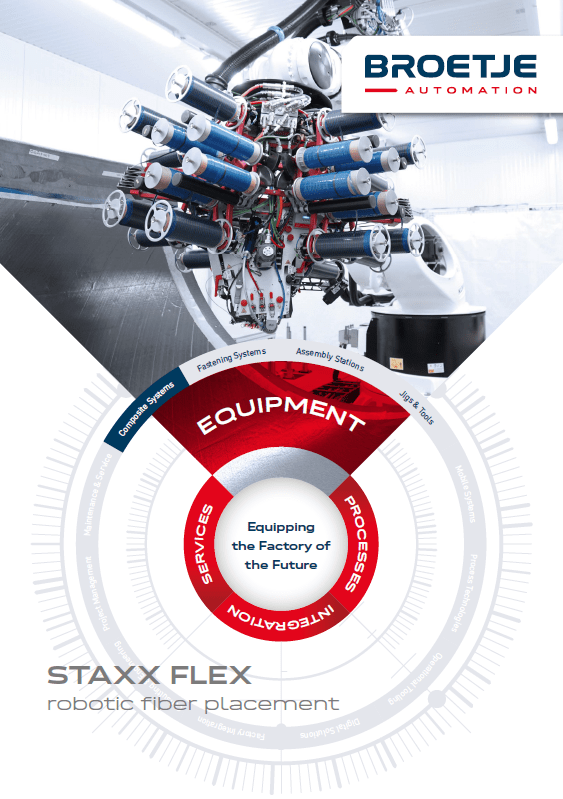

More InformationSTAXX Flex Product Information
Download our product flyer for more detailed information about the STAXX Flex.
