Power RACe
The Aerospace Robot
The Power RACe (Robot Assembly Cell) is a highly flexible robotic system specifically designed for the needs of the aerospace industry. It functions as an automated positioning system to perform multiple processes in one machine such as drilling, riveting, milling and other high precision, high-force applications.
Components such as wing box, stabilizers, fuselage etc. can be automated drilled and riveted by the mobile robot. The system is highly standardized and relies on proven technologies with long term spare part availability. With up to 50% reduced drill times and 40% higher overall performance, the Power RACe is the ideal system to automate complex industrial manufacturing processes – suitable even for lower rate programs.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationTechnical Data
Drill end-effector
- Drill speed: max. 24.000 rpm
- Drill spindle feed: up to 197 “/min / 5.000 mm/min
- Drill diameter: up to 5/8” / 15,90 mm
- Countersink repeatability: ± 0,0006”/ ± 0,015 mm
- Clamping force: 110 – 600 lbs / 50 – 270 daN
- Hole quality : up to H7
Positioning system
- Positioning accuracy linear axis: ±0,004“/ ±0,1 mm
- Positioning accuracy 3D: ±0,012” / ±0,3 mm
- Positioning repeatability 3D: ISO9283 Value ±0,002” / ±0,06mm
- Work envelope : 4m x 5m x 1,5m
- Double bearing and master slave drive trains for highest stiffness and minimum backlash
Special Features
- Standardized drive train and controls
- Higher stiffness based on optimized machine design
- Maximum flexibility, no limitation to only one workpiece or workplace
- High speed precision drill spindle and tool changer (up to 30 places)
- Optional Movable platform with self-driven omni-directional wheels, stationary design or rail system
- Integrated automatic lifting, test piece holder and sensor calibration function
- Sensor Systems for Distance, Normality, Workpiece Zero Point, Tack Rivet Detection, Countersink Depth, Fastener Head Height, Hole Diameter, Sealant
- Observation of cartesian safety zones
- Closed loop position control with direct measurement systems
- BA Lube advanced lubrication system
- Vibration Drilling

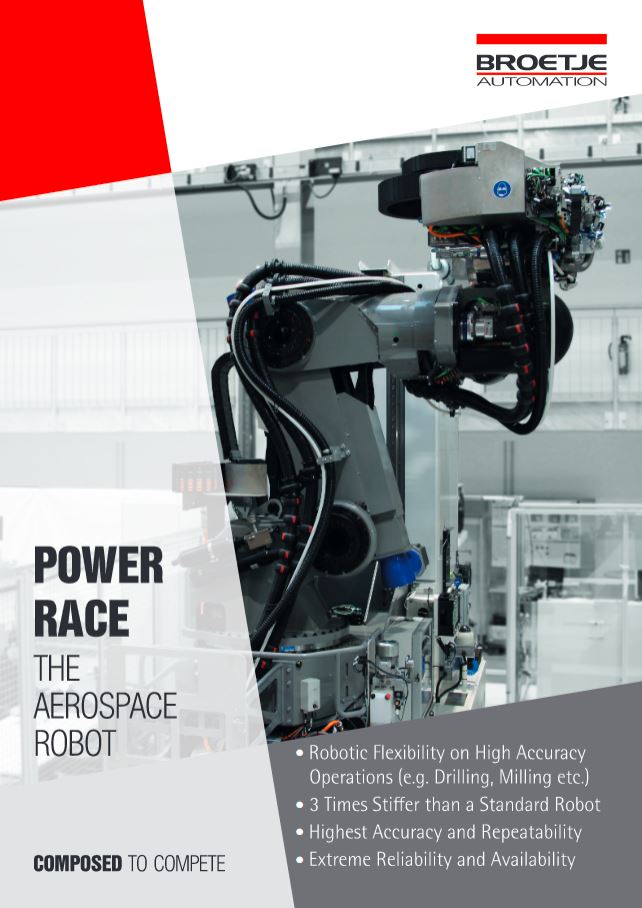

Power RACe Product Information
Want to know more about our product? Click the Button below to download this document.
