MPAC

Multi Panel Assembly Cell

The Multi Panel Assembly Cell (MPAC) is an automated fastening machine for various panel types. The flexible configuration with all-electric end effector and independent inner vehicle enables highest throughput rates and maximum workpiece flexibility.

MPAC systems are ideal for moving lines efficiently utilizing both the rail-based movable gantry system and the moving workpiece. The 10-axes positioner makes the system extremely adaptable. It can be configured with the optional Broetje- Automation Flexible Tooling to allow assembling multiple aicraft panels on one system, e.g. shells, skin panels or wings.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Technical Data

Riveter

  • Drill speed: 50 – 20.000 rpm
  • Countersink repeatability: ± 0.0006”/ ± 0.015 mm
  • Clamping force: 90 – 675 lbf / 41 – 300 daN
  • Drill spindle feed: up to 300 “/min / 7620 mm/min
  • Material: Al/Ti / optional composite
  • optional 10/32” / 7.9 mm Positioner
  • Upset force: up to 18,000 lbf / 8,000 daN

Positioner

  • Positioning accuracy per axis:
    ± 0.002“ / ± 0.05 mm
  • Work travel:
    X-axis: 1,397.2 inch / 35,488 mm (not limited)
    Y-axis: 244 inch / 6,200 mm
    Z-axis: 129 inch / 3,277 mm

Special Features

  • No limitation in workpiece length
  • Easy expandable for future application because of big work envelope
  • All components reachable from floor level => no platforms
  • 180 deg fastening capability
  • All electric fastening system (AEFS)
  • High speed tool changer for drill bits and upper anvils
  • Micro Peck VAD Capability
  • Automated fastener feeding system(AFFS)
  • Siemens NC Controls (10 ea axes for positioner)
  • Minimal Quantity Lubrication System (MQL) / BA Lube

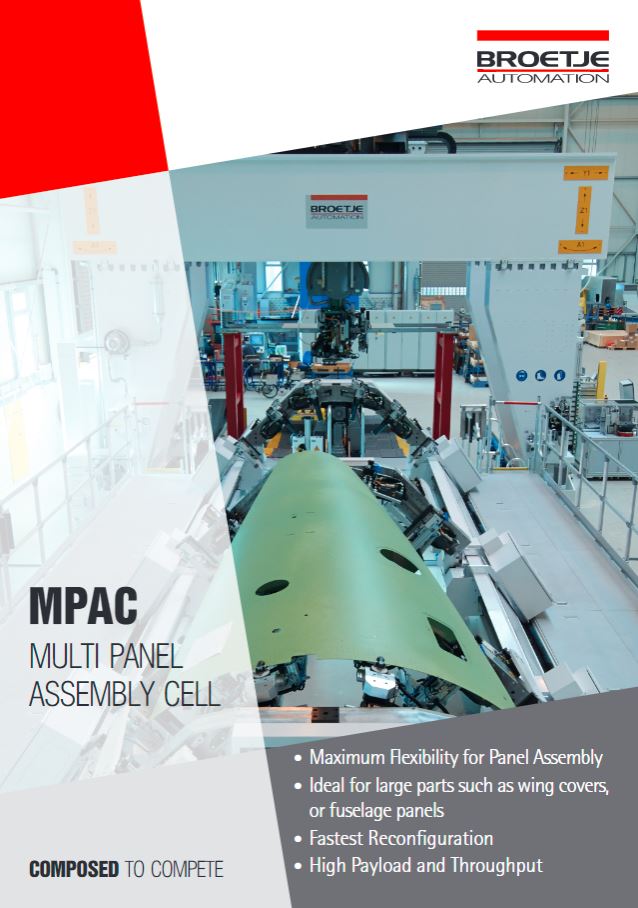

MPAC Product Information

Want to know more about our product? Click the Button below to download this document.
